Splitter 4c SAT 5-2450MHz power pass

  • Cod produs: 110011

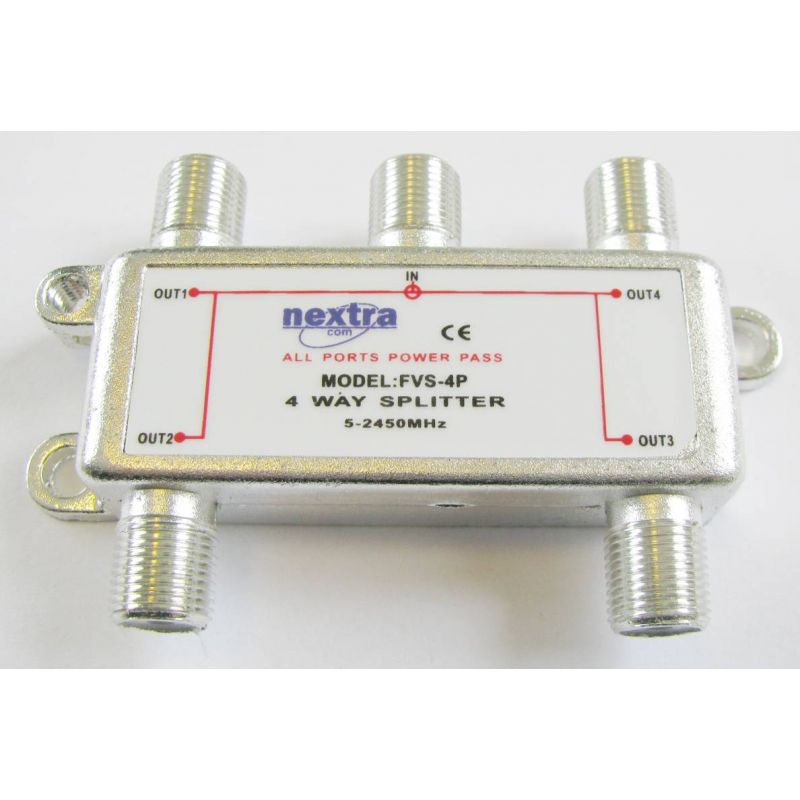

Splitter 4c SAT 5-2450MHz power pass
zoom
Click pentru afisare poza

19,00 lei/Buc

Stoc epuizat

SPLITTER SAT 5-2400MHZ 1 INTRARE 4 IESIRI 10.5DB POWER PASS
Producator: Nextracom

ZLA0637 FVS4P SAT244

Destinatie: SAT
Conectori (tip): F mama-4xF mama
Frecventa (Hz): 5-2450MHz
Compare
Contacteaza-ne pentru informatii Cod produs: 110011 Categorii: ,
Untitled







Frequency MHz

SAT244

Insertion loss In-Out dB max.

5-65
65-862
862-1750
1750-2050
2050-2400

8,3
8,5
10,7
12,0
14,5

Isolation Out-Out dB min.

5-65
65-862
862-1750
1750-2050
2050-2400

18,0
21,5
20,0
20,0
20,0

Return loss input dB min.

5-65
65-862
862-1750
1750-2050
2050-2400

8,0
10,0
10,0
10,0
10,0

Return loss output dB min.

5-65
65-862
862-1750
1750-2050
2050-2400

7,2
13,0
11,0
10,0
10,0

RFI shielding dB min.

5-2400

110

Description :Four Way Splitter, Satellite line 5-2400MHz
Dimensions W/H/D mm :75/60/23
